The small and flexible sensor of the real time data logger allows usage in most of the Pharma applications and it can also be used in combination with very small vials.

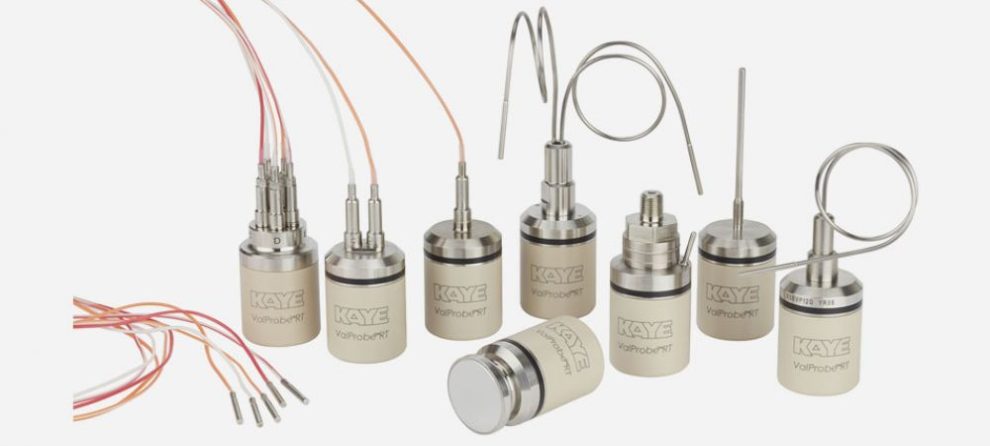

The Kaye ValProbe RT Temperature Logger with thin and flexible sensors is the perfect datalogger for an extended temperature range from -85°C to +140°C, available as single, dual and 5-channel flexible sensors.
The small and flexible sensor of the logger allows usage in most of the Pharma applications and it can also be used in combination with very small vials.
Features
- Temperature range for complete logger: -85°C to 140°C
- Single, dual and 5-channel flexible sensor available
- Sensor length 1.000mm; 40″
- Sensor Tip diameter 2.4mm, length 25mm; 0,98″
Applications
- Steam Sterilizer
- Steam in Place (SIP)
- Water Cascade/Fall Sterilizer
- Incubators
- Stability Chambers
- Freezers
- Freeze Dryer/Lyophilization
- Vessels
Specifications
| Specifications | Flexible |
| Sensor Type | Single, Dual and 5-Channel |
| Sensor Length | 40″ inches 1000 mm |
| Tip Diameter | 0.095″; 2.4mm |
| Measurement Range | -85°C to 140°C |
| Accuracy | -85°C to 140°C, ±0.1°C |
| Kaye ValProbe RT Generic Specifications | |
| Logger Dimensions | Hight: 1,9” / Diameter 1,4” 48mm / 36mm |
| Logger Material | Stainless Steel 316L and Peek |
| Battery | Field replaceable – 3.6V Lithium |
| Sampling Rate | Starting at 1 sec |
| Data Storage | 100.000 Samples retained in non-volatile memory |
| Real-Time Clock Accuracy | < 15sec/day |
| Kaye ValProbe RT Generic Specifications | |
| Calibration | NVLAP/DAkkS Calibration |
| Verification | Automated User Verification capability |
| Sensing Element | Precision Platinum RTD |
| Environmental Temperature | -85°C to 140°C |
| Environmental Pressure | 0-5bar absolute |
| Environmental Humidity | 0-100% condensing |
| Regulatory Compliance | UL and CE |
